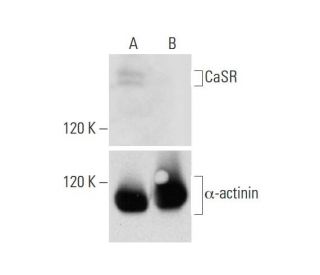

CaSR HDR Plasmid (h): sc-401749-HDR. Western blot analysis of CaSR expression in non-transfected control (A) and puromycin treated, CaSR CRISPR/Cas9 KO Plasmid: sc-401749 plus CaSR HDR Plasmid co-transfected (B) HEK 293T whole cell lysates. Blot probed with CaSR (F-19): sc-32181. α-Actinin (C4): sc-17829 used as specificity and loading control.
CaSR CRISPR Plasmids (h)
- Target species: human
- CRISPR/Cas9 KO Plasmids consists of CaSR-specific 20 nt guide RNA sequences derived from the GeCKO (v2) library
- For CRISPR gene knockout, gRNA sequences direct the Cas9 protein to induce a site-specific double strand break (DSB) in the genomic DNA
- Target-specific CRISPR Plasmids for both gene knockout and activation are available. Please refer to the detailed product information in the tabs below
- Gene knockdown or activation can be assayed using CaSR Antibody (6D4): sc-47741
- All products are provided as transfection-ready, purified plasmid DNA, except the Lentiviral Activation Particles which have been prepackaged as Lentiviral Particles for use with hard-to-transfect cells
QUICK LINKS
Ordering Information
HDR Plasmid
Double Nickase Plasmids
CRISPR Activation Plasmids
Recommended Control Products
SEE ALSO...
CaSR Antibodies for analysis of cellular responses to CaSR CRISPR Products
Learn more about the CRISPR System
CRISPR/Cas9 KO plasmids, Double Nickase Plasmids and CRISPR/dCas9 Activation plasmids are considered a "Licensed Product" and are to be used in accordance with the Limited/Label License. Click here for details
Description
- 20 µg of transfection-ready, purified plasmid DNA; Suitable for up to 20 transfections
- CaSR CRISPR/Cas9 Knockout (KO) Plasmid (h2) consists of a pool of three plasmids each encoding the Cas9 nuclease and a CaSR-specific 20 nt guide RNA (gRNA) designed for maximum knockout efficiency
- gRNA sequences are derived from the GeCKO (v2) library and direct the Cas9 protein to induce a site-specific double strand break (DSB) in the genomic DNA
- **** NOTE: No corresponding HDR is available for this Knockout Plasmid. **** Please use sc-401749-KO-2 and sc-401749-HDR-2 if selection of cells using puromycin resistance is desired.
- Following transfection, gene knockout efficiency can be assayed by WB, IF or IHC using antibody: CaSR Antibody (6D4): sc-47741
See Protocol Online.
DOWNLOADS
QUICK LINKS
Related Products
Description
- 20 µg of transfection-ready, purified plasmid DNA; Suitable for up to 20 transfections
- CaSR Double Nickase Plasmid (h) consists of a pair of plasmids each encoding a D10A mutated Cas9 nuclease and a target-specific 20 nt guide RNA (gRNA) designed to knockout gene expression with greater specificity than its CRISPR/Cas9 KO counterpart
- Paired gRNA sequences are offset by approximately 20 bp to allow for specific Cas9-mediated double nicking of the genomic DNA, which mimics a DSB
- One plasmid in the pair contains a puromycin-resistance gene for selection; the other plasmid in the pair contains a GFP marker to visually confirm transfection
- The paired gRNAs encoded by CaSR Double Nickase Plasmid (h2) differ from the paired gRNAs in CaSR Double Nickase Plasmid (h)
- Following transfection, gene knockout efficiency can be assayed by WB, IF or IHC using antibody: CaSR Antibody (6D4): sc-47741
See Protocol Online.
DOWNLOADS
QUICK LINKS
Related Products
Description
- 20 µg of transfection-ready, purified plasmid DNA; Suitable for up to 20 transfections
- CaSR CRISPR Activation Plasmid (h) is a synergistic activation mediator (SAM) transcription activation system designed to specifically upregulate gene expression
- CaSR CRISPR Activation Plasmid (h) consists of three plasmids at a 1:1:1 mass ratio: a plasmid encoding the deactivated Cas9 (dCas9) nuclease (D10A and N863A) fused to the transactivation domain VP64, and a blasticidin resistance gene; a plasmid encoding the MS2-p65-HSF1 fusion protein, and a hygromycin resistance gene; a plasmid encoding a target-specific 20 nt guide RNA fused to two MS2 RNA aptamers, and a puromycin resistance gene
- The resulting SAM complex binds to a site-specific region approximately 200-250 nt upstream of the transcriptional start site and provides robust recruitment of transcription factors for highly efficient gene activation
- Following transfection, gene activation efficiency can be assayed by WB, IF or IHC using antibody: CaSR Antibody (6D4): sc-47741
See Protocol Online.
DOWNLOADS
QUICK LINKS
Related Products
Ordering Information
| Product Name | Catalog # | UNIT | Price | Qty | FAVORITES | |
CaSR CRISPR/Cas9 KO Plasmid (h2) | sc-401749-KO-2 | 20 µg | $397.00 | |||
CaSR HDR Plasmid (h2) | sc-401749-HDR-2 | 20 µg | $445.00 | |||
CaSR Double Nickase Plasmid (h) | sc-401749-NIC | 20 µg | $410.00 | |||
CaSR Double Nickase Plasmid (h2) | sc-401749-NIC-2 | 20 µg | $410.00 | |||
CaSR CRISPR Activation Plasmid (h) | sc-401749-ACT | 20 µg | $397.00 | |||
CaSR CRISPR Activation Plasmid (h2) | sc-401749-ACT-2 | 20 µg | $397.00 |
