PDE4B CRISPR Activation Plasmid (m): sc-422161-ACT
- Target species: mouse
- 20 µg of transfection-ready, purified plasmid DNA; Suitable for up to 20 transfections

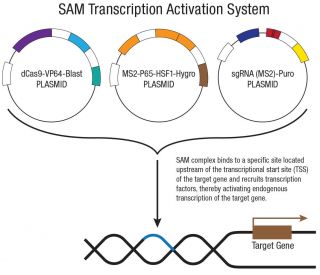

- PDE4B CRISPR Activation Plasmid (m) is a synergistic activation mediator (SAM) transcription activation system designed to specifically upregulate gene expression
- PDE4B CRISPR Activation Plasmid (m) consists of three plasmids at a 1:1:1 mass ratio: a plasmid encoding the deactivated Cas9 (dCas9) nuclease (D10A and N863A) fused to the transactivation domain VP64, and a blasticidin resistance gene; a plasmid encoding the MS2-p65-HSF1 fusion protein, and a hygromycin resistance gene; a plasmid encoding a target-specific 20 nt guide RNA fused to two MS2 RNA aptamers, and a puromycin resistance gene
- The resulting SAM complex binds to a site-specific region approximately 200-250 nt upstream of the transcriptional start site and provides robust recruitment of transcription factors for highly efficient gene activation
- gRNAs encoded by PDE4B CRISPR Activation Plasmid (m) and PDE4B CRISPR Activation Plasmid (m2) target distinct regulatory regions upstream of the Pde4b transcriptional start site. One or both designs may be available
Ordering Information
| Product Name | Catalog # | UNIT | Price | Qty | FAVORITES | |
PDE4B CRISPR Activation Plasmid (m) | sc-422161-ACT | 20 µg | $397.00 |
Mouse Pde4b encodes phosphodiesterase 4B (PDE4B), a cAMP-specific phosphodiesterase that hydrolyzes cAMP to 5′-AMP and constrains compartmentalized PKA/CREB and EPAC signaling. By shaping intracellular cAMP gradients, PDE4B influences GPCR-driven responses, cytokine-regulated transcriptional programs, and downstream MAPK and NF-κB pathway activity in a cell-type- and context-dependent manner. Pde4b function is widely studied in immune and inflammatory signaling, neuronal plasticity, and metabolic regulation where altered cAMP turnover can shift gene expression and cellular activation states. Dysregulated PDE4B-associated signaling has been linked to phenotypes relevant to inflammation and neurobehavioral biology, supporting its use in mechanistic studies of pathway modulation.
PDE4B CRISPR Activation Plasmid (m) provides a targeted, non-destructive approach to upregulating endogenous Pde4b expression without altering the underlying DNA sequence.
PDE4B CRISPR Activation Plasmid (m) is a three-plasmid synergistic activation mediator (SAM) system engineered for highly efficient, site-specific transcriptional upregulation of the Pde4b locus in human cell lines. The system is built around a catalytically inactive Cas9 (dCas9) carrying two inactivating mutations (D10A and N863A) that eliminate nuclease activity while preserving DNA binding. This dCas9 is fused to VP64, a potent transcriptional activator, and is co-expressed with a blasticidin resistance gene for selection. The second plasmid encodes the MS2-p65-HSF1 fusion protein, a secondary activator complex that works in concert with dCas9-VP64, alongside a hygromycin resistance gene. The third plasmid encodes a target-specific 20 nt sgRNA fused to two MS2 RNA aptamers that recruit the MS2-p65-HSF1 complex to the activation site, accompanied by a puromycin resistance gene. The three plasmids are delivered at a 1:1:1 mass ratio for balanced expression of all system components.
Once assembled at the target locus, the SAM complex binds within approximately 200 bp upstream of the Pde4b transcriptional start site, where VP64, p65, and HSF1 act in concert to recruit transcriptional machinery and drive upregulation of endogenous PDE4B expression. Unlike nuclease-active Cas9, dCas9 does not introduce double-strand breaks or modify the genomic sequence, preserving the native Pde4b locus and enabling the study of PDE4B-dependent transcriptional responses at the endogenous locus, making it a valuable tool for functional studies, target gene identification, and the modeling of PDE4B pathway restoration in tumor cells with silenced or reduced Pde4b expression.
For Research Use Only. Not Intended for Diagnostic or Therapeutic Use.
