Hic-5 CRISPR/Cas9 KO Plasmid (m): sc-423365
- Target species: mouse
- 20 µg of transfection-ready, purified plasmid DNA; Suitable for up to 20 transfections
- Hic-5 CRISPR/Cas9 Knockout (KO) Plasmid (m) is a pool of plasmids, each encoding Cas9 nuclease and a target-specific 20 nt guide RNA (gRNA) designed for maximum knockout efficiency using sequences derived from the GeCKO v2 library
- gRNA sequences direct Cas9 to induce site-specific double-strand breaks (DSBs) in the Hic-5 genomic locus, resulting in gene knockout through non-homologous end joining (NHEJ)
- Hic-5 HDR Plasmid (m) (sc-423365-HDR) is recommended for co-transfection with Hic-5 CRISPR/Cas9 KO Plasmid (m) to enable selection of successfully edited cells through HDR-mediated integration of a puromycin resistance cassette and RFP reporter gene
- Hic-5 HDR Plasmid (m) is a pool of plasmids, each containing a homology-directed repair (HDR) template corresponding to the gRNA target sites in the Hic-5 CRISPR/Cas9 KO Plasmid (m)
- Each HDR plasmid contains two ~800 bp homology arms flanking the puromycin resistance and RFP cassettes, designed to bind genomic DNA sequences surrounding the Cas9-induced double-strand break site and facilitate precise HDR-mediated integration
- The puromycin resistance and RFP genes are flanked by LoxP sites, enabling removal of selection markers via Cre recombinase (Cre Vector: sc-418923) after establishing stable knockout cell lines

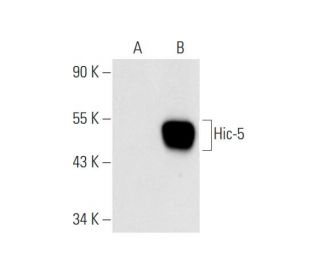

- Following transfection, gene knockout efficiency can be assayed by WB, IF or IHC using antibody: Hic-5 Antibody (C-6): sc-271353
Ordering Information
| Product Name | Catalog # | UNIT | Price | Qty | FAVORITES | |
Hic-5 CRISPR/Cas9 KO Plasmid (m) | sc-423365 | 20 µg | $397.00 | |||
Hic-5 HDR Plasmid (m) | sc-423365-HDR | 20 µg | $445.00 |
Overview
Tgfb1i1 encodes Hic-5, a paxillin family LIM domain adaptor enriched at focal adhesions and mechanosensitive adhesion complexes in mouse cells. Hic-5 scaffolds signaling and cytoskeletal regulators to coordinate integrin-dependent adhesion, actin remodeling, cell migration, and extracellular matrix sensing, linking these processes to TGF-β–responsive transcriptional programs. Through its roles in focal adhesion dynamics and stress-responsive signaling, Hic-5 is frequently studied in pathways governing tissue remodeling and inflammatory microenvironments. Dysregulated adhesion and TGF-β–associated signaling contexts that involve Hic-5 are relevant to fibrotic phenotypes and tumor–stroma interactions, supporting its use as a mechanistic node in disease-model research.
Hic-5 CRISPR/Cas9 KO Plasmid (m) is a pool of plasmids designed for targeted disruption of the Tgfb1i1 gene in mouse cell lines. Each plasmid in the pool co-expresses a unique sgRNA, targeting a distinct site within the Tgfb1i1 locus, alongside the Streptococcus pyogenes Cas9 nuclease, and encodes GFP to enable fluorescent identification and enrichment of successfully transfected cells. This multi-guide strategy increases the likelihood of inducing frameshifts or deletions that produce a functional knockout, offering a more robust alternative to single-guide approaches. DSBs induced at multiple sites are resolved through non-homologous end joining (NHEJ) or, when used with the included HDR donor template, homology-directed repair (HDR) at a defined target site within the locus.
When used in conjunction with the RFP-expressing HDR donor, GFP and RFP fluorescence can be used together to distinguish transfected from edited cell populations, streamlining flow cytometry-based sorting and clone selection workflows.
Homology-Directed Repair (HDR) Donor — Puromycin Cassette with RFP Reporter
For applications requiring confirmed, selectable knockout clones, Hic-5 HDR Plasmid (m) includes an HDR donor construct containing a puromycin resistance cassette (PuroR) and a red fluorescent protein (RFP) reporter, flanked by homology arms specific to a defined Tgfb1i1 target site.
When co-transfected with Hic-5 CRISPR/Cas9 KO Plasmid (m):
- The PuroR-RFP cassette integrates at the Cas9 cut site via HDR, disrupting the Tgfb1i1 open reading frame.
- RFP fluorescence provides an immediate visual indicator of successful integration, enabling fluorescence-based identification or sorting of edited cells prior to or alongside puromycin selection.
- Successfully edited cells are confirmed through puromycin resistance, substantially reducing clone screening burden.
- This selection strategy is ideal for generating stable, clonal KO cell lines for downstream functional studies, drug screening, or model development.
Cre-lox Cassette Removal System
The HDR donor construct features loxP sites flanking the PuroR-RFP selection cassette to allow clean marker removal following clone confirmation. Transient expression of Cre recombinase via the included Cre Vector: sc-418923 excises the cassette, leaving a minimal residual loxP site within the Tgfb1i1 locus and eliminating potential confounding effects on downstream assays.
This two-step approach:
- Minimizes disruption to local chromatin architecture and neighboring regulatory elements
- Restores a near-native genomic context at the edited locus
- Enables reuse of the puromycin selection strategy in the same cell line for additional edits
Key Features
- gRNA targeting Tgfb1i1 exon(s) critical for Hic-5 function
- Co-expression of SpCas9 and sgRNA from a single plasmid for simplified delivery
- HDR donor with puromycin resistance for positive clone selection
- loxP-flanked PuroR cassette with Cre recombinase vector for seamless marker removal
- Supplied ready to use for delivery by transfection
For Research Use Only. Not Intended for Diagnostic or Therapeutic Use.
